450 TPH Crusher Production Line: Complete Equipment Set & Cost

For medium to large-scale quarry operators and mining contractors, efficiency is the lifeline of profitability. When scaling up operations to meet high market demand for aggregates, selecting a complete set of equipment for the crusher production line with 450tph is a critical decision. A poorly configured plant can lead to bottlenecks, high wear costs, and inconsistent particle shapes, ultimately draining your ROI.

At Liming Heavy Industry, we understand that a 450 tons per hour (TPH) plant is a significant investment. It requires a robust design capable of handling hard rocks like granite and basalt, or softer ores like limestone, without frequent downtime. This article details our professional configuration for a 450TPH crushing plant, explaining the process flow, equipment list, and why this specific setup maximizes your tonnage while minimizing operational costs.

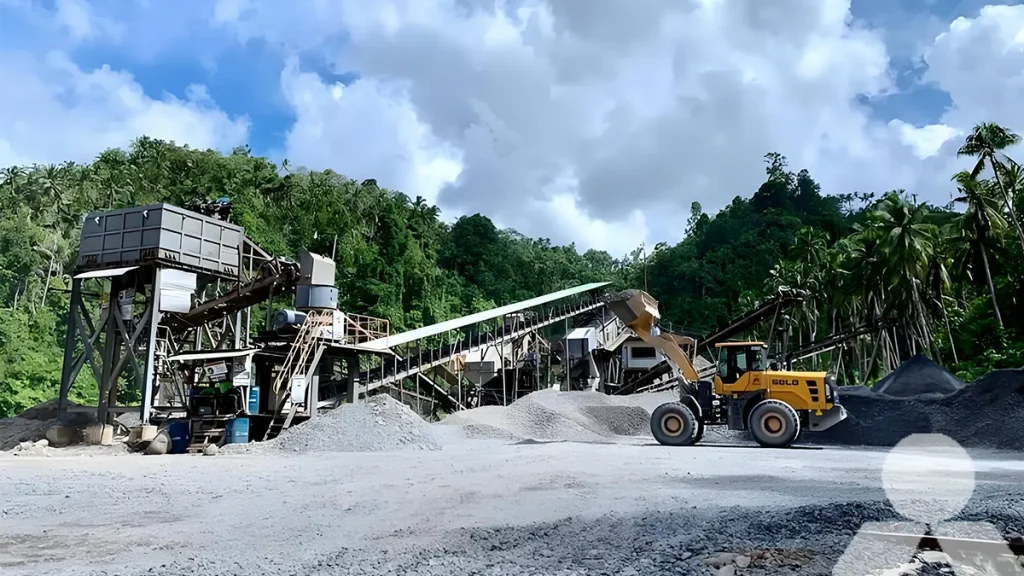

Understanding the 450TPH Production Scale

A 450TPH crushing line falls into the category of medium-large scale production. This capacity typically produces approximately 3,000 to 4,000 tons of final product per 8-10 hour shift. To achieve this output stably, the complete set of equipment must work in perfect synchronization.

Key factors influencing the configuration include:

• Raw Material Hardness: Is it hard rock (Granite, Basalt) or soft rock (Limestone)?
• Feed Size: Maximum size of the stones entering the primary crusher.
• Output Requirements: The specific sizes of final aggregates needed (e.g., 0-5mm, 5-10mm, 10-20mm).

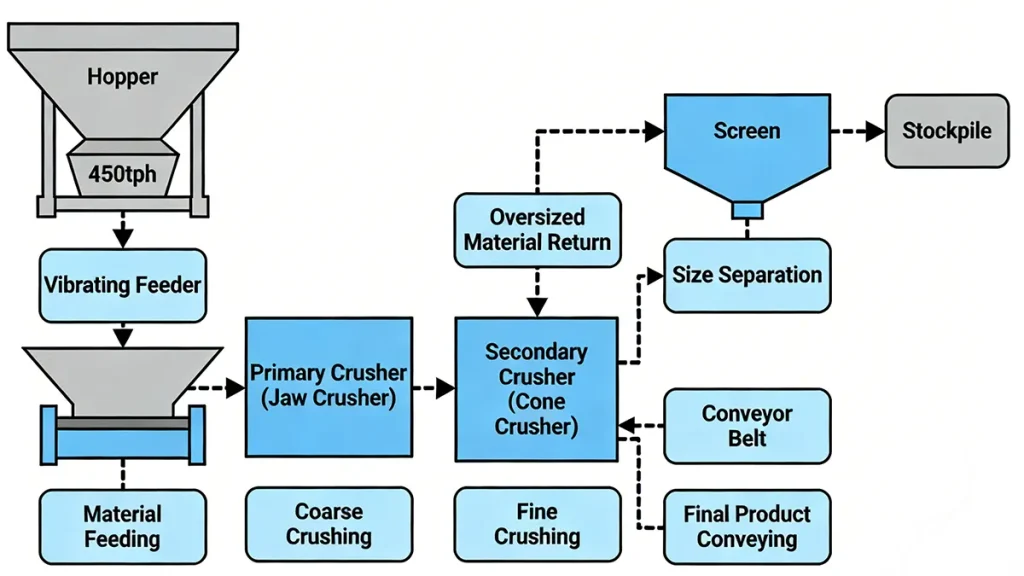

Recommended Configuration: The "Hard Rock" Solution

For the most challenging applications, such as crushing granite or river pebbles, Liming Heavy Industry recommends a three-stage crushing process to reduce wear on individual machines and ensure high-quality cubical shaping.

1. Primary Crushing: PE Series Jaw Crusher

The first line of defense is the PE Series Jaw Crusher. For a 450tph line, we typically configure a large model like the PE-1000×1200 or PE-1200×1500.

• Role: Reduces large boulders (up to 800-1000mm) into smaller chunks (150-300mm).
• Why Liming: Our PE series features a deep crushing cavity and high reduction ratio, ensuring the secondary crushers are fed efficiently.

2. Secondary Crushing: HST Single Cylinder Hydraulic Cone Crusher

To handle the throughput of 450tph, we often employ two units of HST Series Single Cylinder Hydraulic Cone Crusher (e.g., HST160 or HST250) working in parallel or series.

• Role: Crushes the material down to required aggregate sizes.
• Why Liming: The HST series offers fully automatic control and hydraulic adjustment, which maintains consistent capacity and protects the machine from uncrushable iron.

3. Screening & Washing: YK Vibrating Screens

No production line is complete without accurate screening. We utilize heavy-duty YK Series Vibrating Screens (3 or 4 decks) to separate the final products.

Typical Equipment List for 450TPH Granite Line

Why Choose Liming's 450TPH Solution?

Investing in a complete set of equipment for the crusher production line with 450tph from Liming brings specific operational advantages:

1. High Automation: Our integrated control systems allow for real-time monitoring, reducing labor costs and human error.
2. Optimized Energy Consumption: By matching the right motor power to the crusher capacity, we reduce electricity usage per ton of production.
3. Quick ROI: The combination of durability and high output means you can fulfill large contracts faster, breakeven sooner, and secure profit margins.
4. Global Service Support: With offices in Africa, South America, and Southeast Asia, Liming provides rapid spare parts delivery and on-site maintenance.

Frequently Asked Questions (FAQ)

1. How much land is required for a 450tph crushing plant?

A typical 450tph stationary plant requires approximately 4,000 to 6,000 square meters of flat land. However, this varies based on the topography and stockpile requirements. Liming engineers provide custom layout designs to fit your specific site.

2. Can this production line process wet or sticky materials?

While the standard configuration is for dry processing, if the raw material contains significant clay or moisture, we can integrate heavy-duty feeders or log washers into the "complete set of equipment" to prevent clogging and ensure clean aggregates.

3. What is the estimated price for a 450tph complete set?

The price varies depending on the specific models (e.g., Cone vs. Impact crusher) and auxiliary equipment. Generally, a high-end 450tph line ranges from $800,000 to $1.5 million USD. For an accurate quote, please contact us with your material analysis.

Start Your High-Efficiency Project Today

Building a successful quarrying business starts with the right foundation. A complete set of equipment for the crusher production line with 450tph is a powerful asset that can position you as a market leader in aggregate supply. Liming Heavy Industry combines decades of manufacturing expertise with on-site practical experience to deliver solutions that last.

Don't settle for generic setups. Get a solution tailored to your rock and your budget.
