Advantages of CI5X Series Primary Impact Crusher
Dual-stage jaw-to-impactor setups on 120MPa limestone are obsolete. Feeding 1000mm boulders directly into the CI5X1620's high-inertia rotor shatters the material instantly, maintaining rotational mass under a 400kW load. This single-pass kinetic cleavage yields 80% cubical aggregate, neutralizing the need for secondary circuits and radically slashing daily electrical expenditure.
I watch quarry owners bleed capital daily by running dual-stage circuits on 120MPa limestone. Feeding 1000mm boulders into a CI5X1620 completely eliminates the primary jaw crusher. The massive high-inertia rotor shatters the rock instantly, sustaining a 700 tph output with a single kinetic pass. Redundant secondary crushing is an architectural failure.
High-Inertia Rotor Dynamics and Kinetic Cleavage
Lightweight rotors stall against massive feed. Heavy-duty rotors obliterate it.
When a 2-ton boulder drops into a standard crushing cavity, lightweight rotors lack the mass to maintain rotational momentum. The kinetic resistance of the rock overcomes the steel, the motor stalls, and the main breaker trips. You lose an hour of production clearing the jam. The CI5X utilizes an oversized, high-inertia rotor driven by a 400kW to 500kW motor to maintain rotational kinetic energy.
It effortlessly absorbs the kinetic shock without an RPM drop.
This rotational mass is the core operational advantage. The blow bars strike the limestone with devastating velocity, throwing the material against the primary impact racks. The kinetic energy forces the rock to fracture along its natural structural weaknesses. We call this kinetic cleavage. Instead of mechanically compressing the rock like a jaw, the CI5X impactor uses pure velocity to disintegrate the feed in milliseconds.
Eliminating the Jaw: The 1100mm Feed Tolerance

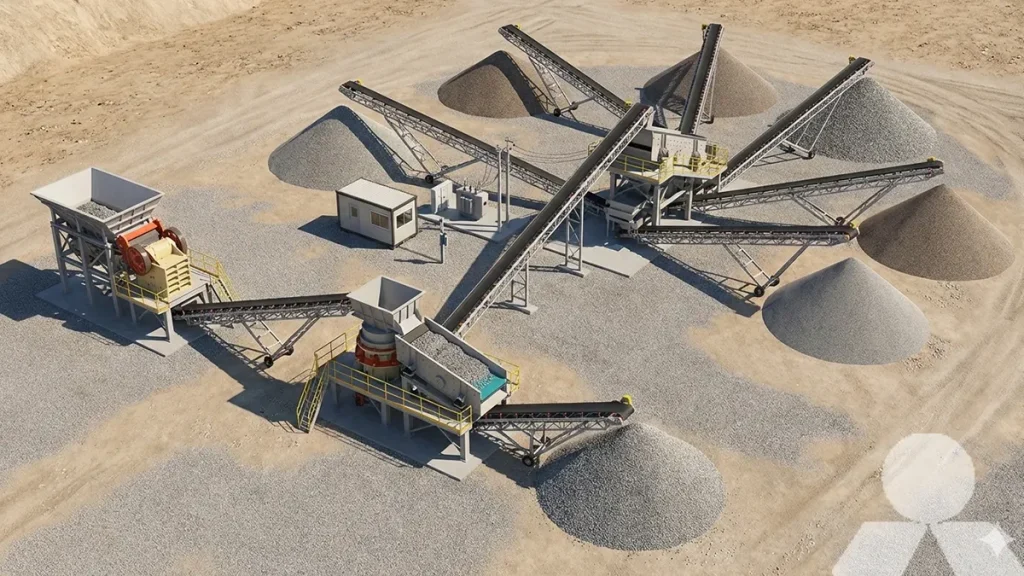

Traditional aggregate flowcharts mandate a primary jaw crusher followed by a secondary impactor. This logic is fundamentally flawed for medium-hard rock. A traditional primary jaw crusher produces up to 30% flaky, elongated material that absolutely mandates a secondary crushing stage to correct the grain shape.
The CI5X primary impactor neutralizes this step entirely.

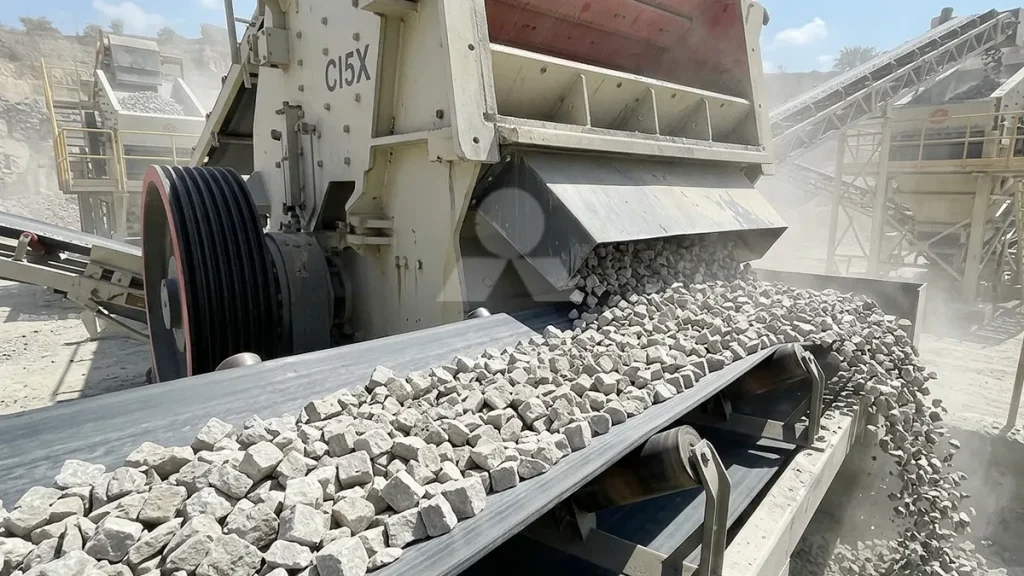

By engineering a massively expanded feed opening, the CI5X1620 accepts up to 1100mm raw material directly from the excavator. The single-pass kinetic cleavage yields over 80% cubical 0-40mm aggregate directly from the primary discharge belt. You skip the jaw. You skip the intermediate screening.
Deploying the CI5X as a primary unit radically condenses the plant footprint and maximizes the tonnage-to-power ratio.
| Process Stage | Recommended Model | Capacity (tons per hour) | Max Feed (mm) |
|---|---|---|---|
| Primary Kinetic Extraction | CI5X1620 | 500-900 | 1100 |
| High-Volume Primary Option | CI5X2023 | 1200-2000 | 1300 |
| Mid-Range Single Pass | CI5X1415 | 350-550 | 900 |
Examine the CI5X1620 parameter. Pushing 500-900 tph through a single chassis while accepting 1100mm boulders proves the machine's primary capability. You are replacing two machines with one, fundamentally accelerating your asset amortization cycle.
Infrastructure Contraction and Electrical Efficiency
By neutralizing the secondary crushing circuit, plant architects can eliminate intermediate surge piles and up to 60 meters of transfer conveyors. Every meter of rubber belt and every intermediate transfer point is a liability that draws electrical current and demands maintenance.
Shrinking the plant's footprint slashes daily electrical expenditure by up to 35%.
When you utilize a primary impactor, the aggregate flows directly from the crusher discharge to the final grading screen. The production-to-cost ratio skyrockets. The CI5X further optimizes this through its hydraulic opening system. Changing blow bars no longer requires a mechanical winch and an 8-hour shift. Hydraulic cylinders expose the rotor in minutes, ensuring the machine spends its time shattering rock, not sitting idle under a mechanic's wrench.
120MPa Limestone CI5X1620: High-Inertia Kinetic Thresholds
- Sustained Output: Fluctuation between 680-740 tph on raw blast feed
- Rotor Drive Power: 400-500 kW maintaining constant kinetic mass
- Maximum Feed Integration: 1100 mm boulders (Direct excavator dump)
- Grain Shape Yield: >80% cubical aggregate directly off the primary discharge
- Circuit Contraction: Elimination of 1 secondary cone and 60m of belting
LH-ADVANTAGES_OF_CI5X_SERIES_PRIMARY_IMPACT_CRUSHER-April/2026-Ref-#39102
Single-Pass Kinetic Yield & Rotor Inertia Verdict
I audited a site in Vietnam where a standard secondary impactor was forced to process primary blast rock. The 2-ton boulders completely absorbed the rotor's kinetic momentum. The CI5X engineers solved this by massively increasing the rotor weight and applying a 400kW+ drive, ensuring the rotational inertia shears the 120MPa rock without dropping RPM.
Historically, crushing limestone with a jaw produces up to 30% flaky material due to pure compressive force. The CI5X throws the material against impact racks, exploiting natural fault lines in the geology. This kinetic cleavage yields highly cubical 0-40mm aggregate in a single pass, completely bypassing the need for a secondary shaping cone.
Stop paying for conveyors you do not need. By neutralizing the secondary crushing circuit, we eliminate intermediate surge piles and 60 meters of transfer belting. This direct-to-screen material flow permanently slashes the daily electrical expenditure by 35% while drastically reducing the maintenance points on the site.
Data shows that manual blow bar replacement on legacy impactors takes 8 to 10 hours. The CI5X integrates a hydraulic opening mechanism that exposes the heavy-duty rotor in minutes. The mechanical downtime is reduced to a fraction, keeping the asset producing 700 tph instead of waiting on a manual winch.
Obliterating the Dual-Stage Bottleneck
Using a jaw crusher on medium-hard limestone is a relic of outdated engineering. The CI5X Series primary impactor dictates a new reality for single-pass mass flow. Its high-inertia rotor absorbs 1000mm boulders and outputs 80% finished aggregate in milliseconds, stripping 60 meters of redundant conveyors from your plant footprint. If you continue to fund dual-stage setups for 120MPa rock next month, your excessive electrical draw and maintenance downtime will permanently cripple your yield velocity.
Deploy the high-inertia primary impactor and streamline your mass flow immediately.
Eliminate secondary crushers and maximize your single-pass yield.
"What is the exact Mohs hardness and max block size of your current limestone blast? Send me the geology report, and let's calculate your exact plant contraction metrics." — From the Desk of your Efficiency Evangelist
