Types of Production Line Jaw Crusher for Lime

Limestone is one of the most widely used raw materials in the construction, chemical, and metallurgy industries. However, achieving high-quality quicklime or hydrated lime starts with one critical step: efficient primary crushing. Many quarry operators struggle with choosing the right equipment, often asking about the specific types of production line jaw crusher for lime that can handle high abrasion while maintaining throughput.

At Liming Heavy Industry, we understand that a "one-size-fits-all" approach destroys ROI. Whether you need a 50 t/h setup or a massive 1000 t/h project, selecting the correct jaw crusher determines your plant's profitability. This guide details the optimal jaw crusher configurations for your lime production line.

Why the Jaw Crusher is Critical for Lime Production Lines

In a typical lime production line, the jaw crusher serves as the "head" of the operation. Limestone usually comes from the quarry in large blocks (up to 1000mm). Before it can be processed by secondary crushers (like Impact Crushers or Cone Crushers) or fed into a kiln, it must be reduced significantly.

The jaw crusher is chosen for lime processing because of its:

• High Crushing Ratio: Capable of reducing large boulders to manageable sizes in a single pass.
• Wear Resistance: Manganese steel jaw plates are designed to withstand the hardness of limestone.
• Simple Structure: Easy maintenance ensures the production line runs continuously with minimal downtime.

3 Main Types of Jaw Crushers for Lime Production

Liming Heavy Industry offers three distinct series of jaw crushers, each tailored for specific investment levels and performance requirements.

1. PE Series Deep Rotor Jaw Crusher (The Classic Choice)

The PE series is the veteran of the mining industry. It is known for its reliability and low initial investment cost.

• Best For: Small to medium-scale lime plants facing budget constraints.
• Key Feature: Deep crushing cavity and no dead zone, which improves the feeding capacity and output.
• Capacity: 1 - 1000 t/h.

2. PEW Series European Jaw Crusher (The Modern Standard)

If your types of production line jaw crusher for lime search prioritizes durability and technology, the PEW series is the mid-tier champion.

• Best For: Harder limestone and medium-large scale production lines.
• Key Feature: V-shaped crushing cavity ensures the actual feed width matches the nominal width. Hydraulic wedge setting adjustment makes maintenance faster.
• Capacity: 15 - 650 t/h.

3. C6X Series Jaw Crusher (The High-End Flagship)

For large-scale mining enterprises requiring maximum uptime and automation, the C6X is the pinnacle of crushing technology.

• Best For: Large-scale quarries and automated lime production lines.
• Key Feature: Detachable frame design for easy transport and double-wedge adjusting device. It uses high-quality steel castings and an optimized kinematic parameter for superior throughput.
• Capacity: 160 - 1500 t/h.

Standard Lime Production Line Configuration

A jaw crusher does not work in isolation. To maximize the efficiency of the types of production line jaw crusher for lime discussed above, they are integrated into a complete circuit:

1. Feeding: A Vibrating Feeder sends raw limestone evenly into the Jaw Crusher.
2. Primary Crushing: The Jaw Crusher (PE/PEW/C6X) reduces stone to 100-300mm.
3. Secondary Crushing: An Impact Crusher (PF/PFW) is typically used next for limestone because it shapes the stone well (cubical) and handles soft-medium rock efficiently.
4. Screening: A Vibrating Screen separates the material into different sizes (e.g., 0-5mm, 5-10mm, 10-20mm).
5. Calcination (Optional): Suitable sizes are sent to the lime kiln.

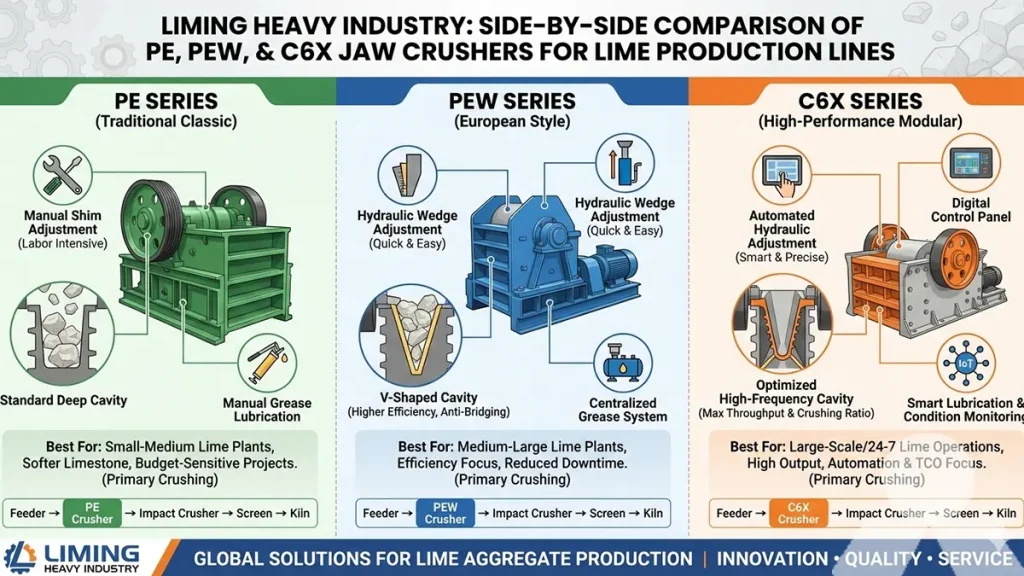

Technical Specifications Comparison

Below is a simplified comparison to help you select the right model for your capacity needs.

Project Case: 300TPH Lime Crushing Line in Southeast Asia

A prominent cement and lime producer in Vietnam approached Liming Heavy Industry to upgrade their aging line. They needed consistent output to feed a rotary kiln.

• Challenge: The old jaw crusher frequently jammed and produced uneven particle sizes.
• Solution: We installed a PEW860 European Jaw Crusher combined with a PFW Impact Crusher.
• Result: Production capacity increased by 35%, and the percentage of "fines" (waste) dropped significantly, optimizing the kiln feed.

Frequently Asked Questions (FAQ)

1. How do I maintain a jaw crusher in a lime production line?

Regular maintenance includes checking the wear of the jaw plates, ensuring proper lubrication of the toggle plate and bearings, and tightening loose bolts. For the C6X series, maintenance is largely simplified due to hydraulic adjustments.

2. What is the price difference between PE and C6X series?

The PE series is the most budget-friendly option, ideal for startups. The C6X series commands a higher initial price due to its advanced technology and materials, but it offers a lower long-term operating cost per ton of production.

3. Can the jaw crusher handle wet limestone?

Limestone can be sticky when wet. While jaw crushers handle moisture better than cone crushers, we recommend equipping the feeder with a pre-screening function to remove soil and mud before the stone enters the crushing cavity.

Conclusion: Choosing the Right Production Line

Selecting the correct types of production line jaw crusher for lime is the foundation of a successful quarrying business. Whether you choose the economical PE, the versatile PEW, or the powerful C6X, Liming Heavy Industry guarantees quality manufacturing and global support.
