In the Philippines, an archipelagic nation rich in mineral resources, a high-efficiency river stone crushing production line has been successfully constructed and commissioned. Engineered by Liming Heavy Industry, this landmark project introduces our cutting-edge NK series mobile crushers to the Philippine market, garnering significant industry attention upon its completion.
The client for this project is a large-scale construction enterprise operating multiple concrete batching plants with robust comprehensive capabilities. Utilizing abundant local river stone as the raw material, the client selected Liming Heavy Industry's mobile jaw crusher, mobile cone crusher, mobile screening plant, and sand washing machine. This complete setup produces various specifications of premium aggregates, primarily serving local infrastructure and real estate development.
Project Overview
- Processed Material: River Stone
- Maximum Input Size: ≤630mm
- Output Size: 5mm, 10mm, 20mm, 38mm
- Project Capacity: 200-250 TPH (Tons Per Hour)
- Application Area: Building materials and concrete batching
- Equipment Configuration: NK75J Mobile Jaw Crusher, NK300HS Mobile Cone Crusher, NK200S Mobile Screening Plant, XSD3016 Sand Washing Machine
Process Flow
The crushing process is designed for maximum efficiency and optimal material flow:
- Primary Crushing: Wheel loaders feed the ≤630mm river stone raw material into the NK75J mobile jaw crusher. Medium and fine materials fall through the grizzly feeder directly onto the main belt conveyor, bypassing the jaw crusher to join the primarily crushed materials for the next stage.

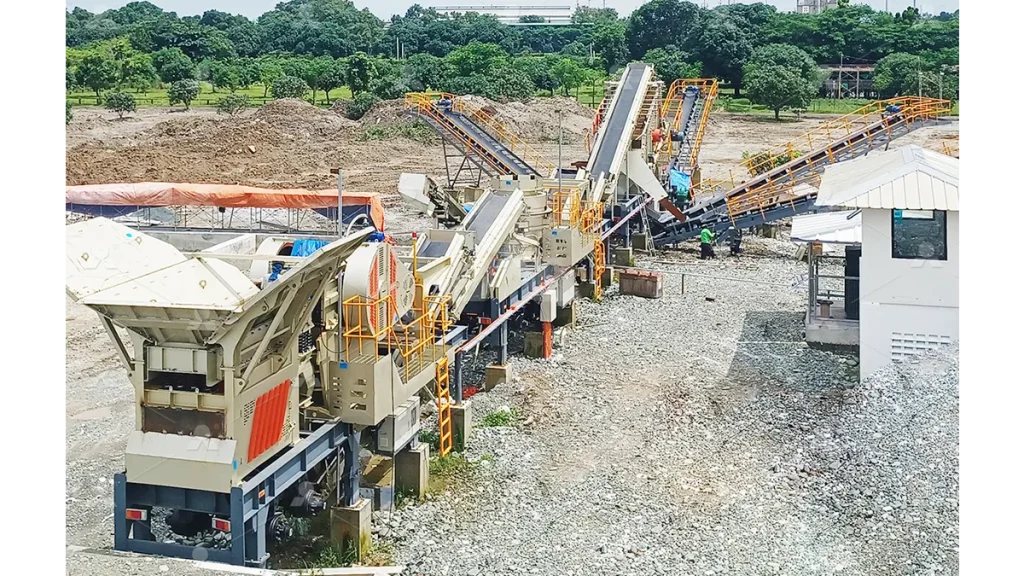

- Secondary Crushing: The NK300HS mobile cone crusher, equipped with a pre-screening function, handles the secondary crushing. Materials are conveyed to the HPT300 hydraulic cone crusher. After crushing, the material undergoes pre-screening. Oversized materials are returned in a closed circuit to the cone crusher, while aggregates meeting the size requirements are sent to the final screening plant.
- Screening & Washing: Following washing and grading by the NK200S-3 screening and washing plant, clean, strictly graded aggregates of different specifications (5mm, 10mm, 20mm, 38mm) are transferred to their respective finished product stockpiles.
Outstanding Project Features
As the first NK series mobile production line engineered by Liming Heavy Industry in the Philippines, this project was meticulously planned with a top-tier equipment configuration.
The entire production line features a compact layout and a minimized footprint. Liming Heavy Industry's integrated equipment seamlessly covers the entire process of river stone crushing, material screening, and final product washing, delivering high-quality sand and gravel aggregates for local infrastructure.
High Level of Intelligence
This mobile production line boasts exceptional intelligence and automation. Equipped with premium-brand touch screens and intelligent industrial computers, operators can easily achieve one-button start/stop operations and real-time online monitoring. The comprehensive integration of soft starters, magnetic iron separators, and automatic lubrication systems further guarantees the long-term, stable operation of the equipment.
Superior Finished Product Quality
The high-performance crushing equipment ensures excellent aggregate cubical shape and precise gradation. Furthermore, the specialized spraying devices in the water-washing stage drastically improve the cleanliness of the final product, fully satisfying the stringent requirements for high-quality concrete production in the local market.
Driving Global Infrastructure Forward
The successful commissioning of this production line marks a solid step in Liming Heavy Industry's business expansion across the Southeast Asian market. It holds vital significance for our global layout and the execution of our internationalization strategy.
Since entering operation, this mobile production line has earned profound recognition from the client for its stable performance, simplified maintenance, and exceptional aggregate shape, establishing itself as a benchmark river stone crushing project in the region.
