Feldspar Mining Process Using NK Series Mobile Crusher

The extraction and processing of feldspar—a critical raw material for the ceramics and glass industries—demand a technical approach that balances high material hardness with strict grain size requirements. Utilizing the NK series tire-mounted mobile crusher allows for a highly stable, modular production environment that eliminates the need for fixed concrete foundations, ensuring maximum systemic availability in complex mining terrains.

I. Primary Stability: Strategic Coarse Crushing

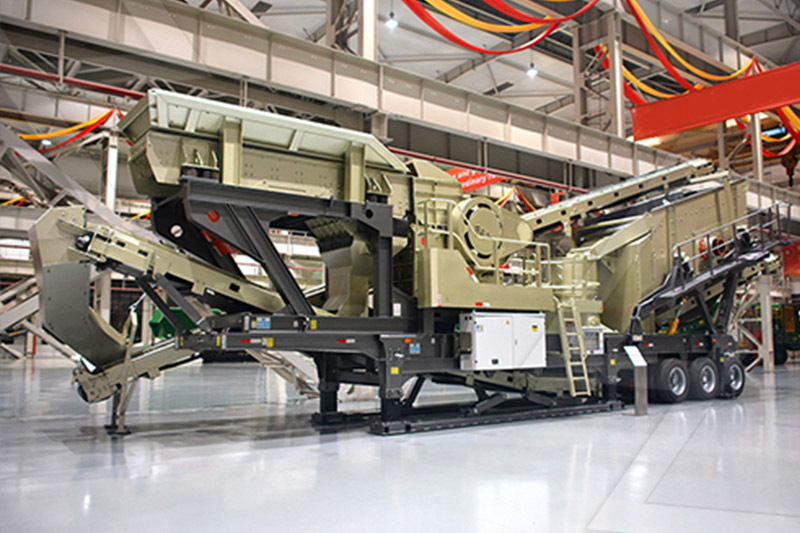

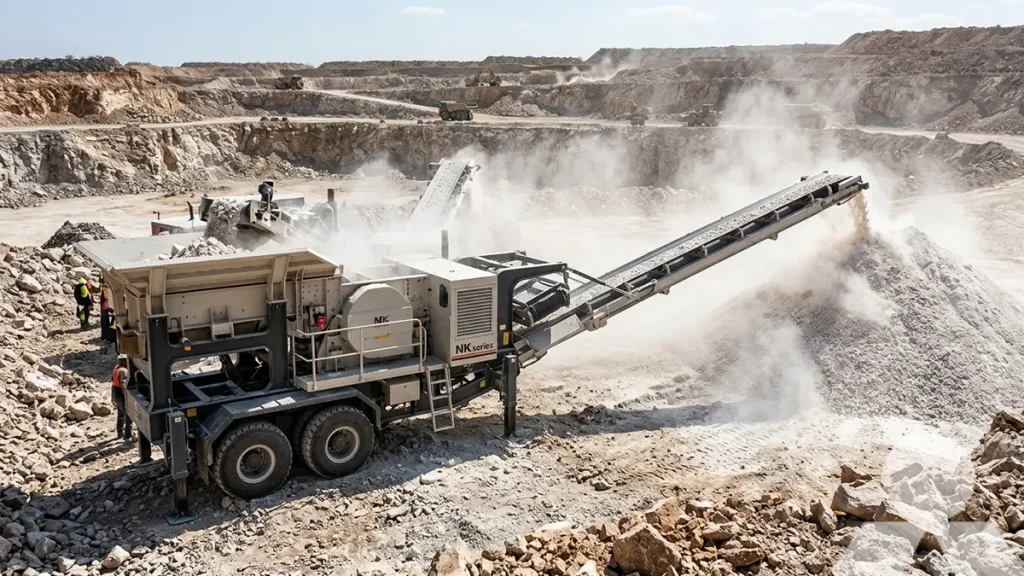

The feldspar mining process begins with the reduction of irregular, high-hardness run-of-mine (ROM) ore. The NK series mobile jaw crusher, typically equipped with the C6X series high-performance jaw crusher, serves as the primary node. The engineering focus here is on the tire-mounted chassis stability; the frame is optimized through kinematic simulation to absorb the high-frequency vibrations inherent in primary feldspar reduction. This allows the station to maintain a high feed size limit without the structural fatigue common in lighter mobile units.

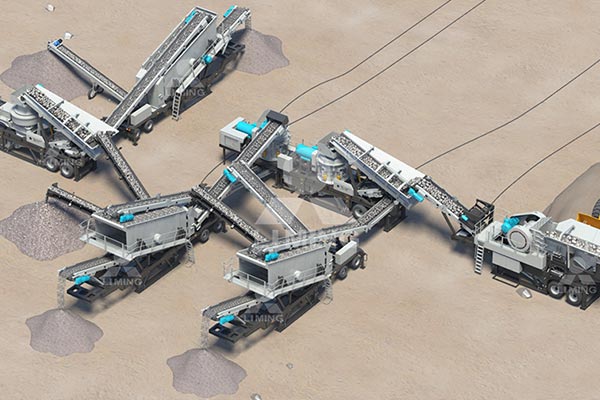

Step-by-Step Feldspar Crushing Flowchart Using the NK Series

To achieve the highest purity and optimal particle shape, the feldspar production line must follow a rigorous, multi-stage crushing and screening workflow. The flexibility of the Liming Heavy Industry NK series Mobile Crusher allows for various configurations depending on the specific deposit characteristics and final product requirements.

Stage 1: Primary Crushing

Raw blasted feldspar rocks, often featuring a maximum input size of up to 700 mm, are fed into the hopper by an excavator or wheel loader. A heavy-duty vibrating feeder evenly supplies the material to the NK Series Mobile Jaw Crusher. The optimized V-shaped crushing cavity ensures high bite force and massive reduction ratios, breaking the raw ore down to a manageable size of approximately 100 mm to 150 mm.

Stage 2: Secondary Crushing and Shaping

The primary crushed feldspar is conveyed directly to the secondary processing stage, typically utilizing the NK Series Mobile Cone Crusher. Cone crushers are explicitly recommended for abrasive materials like feldspar because they operate on a lamination crushing principle, which dramatically reduces wear-and-tear on the mantle and bowl liner compared to impact crushers. This stage reduces the material to a fine, cubical aggregate, usually below 30 mm.

Stage 3: Precise Vibrating Screening

The secondary crushed material is fed into a multi-deck mobile vibrating screen integrated into the NK series circuit. The screen classifies the feldspar into precise industrial specifications. Typical product yield fractions include:

• 0 - 5 mm: High-demand fine powder precursor for float glass manufacturing.
• 5 - 10 mm / 10 - 20 mm: Ideal aggregates for advanced ceramic fluxing agents.

Oversized material (typically >20 mm) is automatically returned via a closed-circuit conveyor back to the cone crusher for further reduction.

Technical Comparison & Machine Specifications

For mining engineers and procurement directors evaluating capital equipment, throughput capacity and energy efficiency are paramount. The following table details the core technical parameters of the NK series tailored for heavy-duty feldspar beneficiation.

Frequently Asked Questions (FAQ)

What is the maximum feed size for the NK series primary station in feldspar mining?

The NK series primary mobile stations, such as the NK75J or NK100E, support a maximum feed size of up to 680mm, depending on the specific jaw crusher configuration and the physical properties of the feldspar ore.

How does the NK series reduce the cost per ton of wear parts in high-hardness mining?

By utilizing inter-particle crushing in the secondary stage, the NK cone crusher reduces direct contact between the ore and the liners, which, combined with optimized alloy materials, minimizes the wear rate per ton of processed feldspar.

Can the NK series modular line be scaled for different capacities?

Yes, the modular design allows for rapid adjustment. For instance, shifting from a 150tph to a 300tph output involves integrating higher-capacity NK modules or adjusting the circulating load through the screening units.
