VSI Crusher in Manufactured Sand Production Line

As natural river sand reserves deplete globally and environmental regulations tighten, quarry owners and contractors are facing a critical challenge: securing high-quality aggregates at a manageable cost. Poorly shaped sand and excessive wear part expenses can instantly eat into a project's profitability. The ultimate solution lies in engineering a highly efficient artificial sand plant. At the heart of this system is the vsi crusher in manufactured sand production line setups. By integrating a Vertical Shaft Impact (VSI) crusher, plant operators can produce premium, cubically shaped sand that meets the strictest concrete construction standards. Liming Heavy Industry provides comprehensive, high-yield sand-making solutions tailored for the rugged demands of global mining and construction sites.

Why Manufactured Sand is the Future of Construction

For decades, the construction industry relied heavily on natural river sand. However, the shift toward artificial (manufactured) sand is accelerating across Southeast Asia, Africa, and South America due to high demand in infrastructure development. Manufactured sand offers several distinct advantages over natural sand:

• Consistent Quality: Unlike natural sand, which varies in gradation and purity, manufactured sand can be strictly controlled during the crushing stage.
• Better Adhesion: The rough surface texture of crushed sand improves the bond between the aggregate and cement paste, increasing concrete strength.
• Zero Impurities: Artificial sand production eliminates organic materials, clay, and silt that typically compromise concrete integrity.

However, to achieve these benefits, the aggregate must be shaped correctly. Flaky or elongated particles require more cement to coat them, driving up concrete production costs. This is exactly where the VSI crusher becomes indispensable.

The Crucial Role of the VSI Crusher

In a standard crushing plant, jaw crushers and cone crushers are excellent for size reduction, but they often produce elongated, sharp-edged particles. The VSI crusher is introduced in the tertiary stage as a "sand maker" and a "shaping machine."

1. Superior Shaping Capability (Rock-on-Rock Technology)

The VSI crusher utilizes a high-speed rotor that flings rock particles into a crushing chamber lined with a bed of the same rocks (the "rock-on-rock" principle). As the particles collide at extreme velocities, they fracture along their natural cleavage planes. This self-breaking mechanism smooths out sharp edges, resulting in a perfectly cubical end product that commands premium market prices.

2. High Proportion of Fines Generation

Because of the high-velocity impact, the VSI crusher generates a substantial amount of fines (particles under 4.75mm), which is exactly the specification required for manufactured sand. By adjusting the rotor speed, operators can control the fineness modulus of the output.

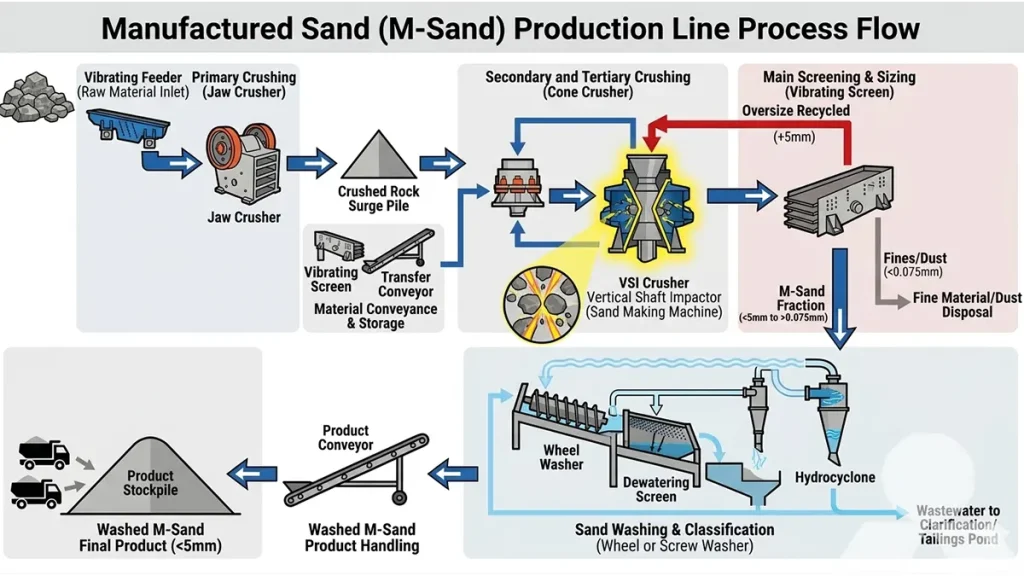

Typical Flow Chart of a Manufactured Sand Production Line

Designing a profitable plant requires syncing the VSI crusher with primary and secondary crushers. Below is a standard, highly efficient flow chart engineered by Liming Heavy Industry for processing hard rocks like granite, basalt, and river pebbles.

Stage 1: Primary Crushing

Raw material is fed via a vibrating feeder into a Jaw Crusher. The jaw crusher handles large boulders, reducing them to a manageable size (typically under 150-200mm) for the secondary stage.

Stage 2: Secondary Crushing

The crushed material is transported by a belt conveyor to a Cone Crusher (for hard rocks like granite) or an Impact Crusher (for softer rocks like limestone). This stage reduces the rock size to roughly 40mm or below.

Stage 3: Tertiary Crushing and Shaping (VSI Stage)

This is the core of the manufactured sand production line. The material is fed into the VSI Sand Making Machine. The VSI crushes and shapes the aggregate. The discharge is then sent to a vibrating screen.

Stage 4: Screening and Washing

A multi-deck Vibrating Screen separates the material into different sizes. Materials larger than 4.75mm are sent back to the VSI crusher in a closed-loop circuit. The 0-4.75mm sand is routed to a Sand Washing Machine to remove excess stone powder, resulting in clean, high-grade manufactured sand.

Recommended Equipment Configuration List

Below is a typical equipment list for a 200 Ton-Per-Hour (TPH) artificial sand plant processing hard rock (e.g., Granite). This configuration ensures maximum uptime and high ROI.

Why Choose Liming Heavy Industry's VSI Crushers?

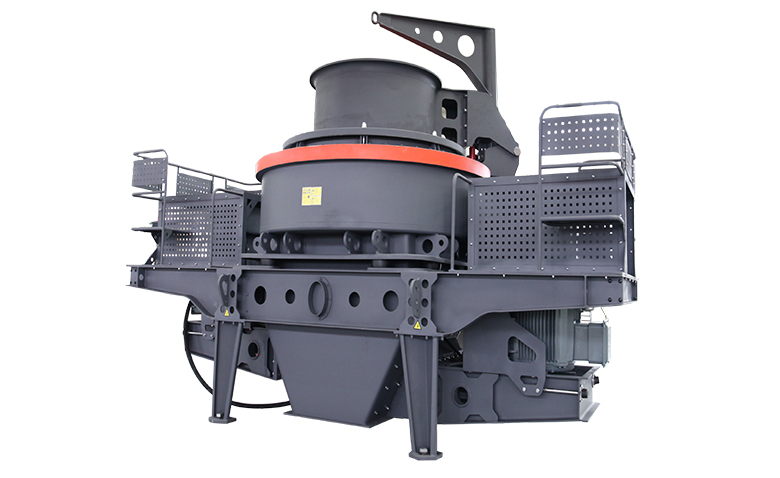

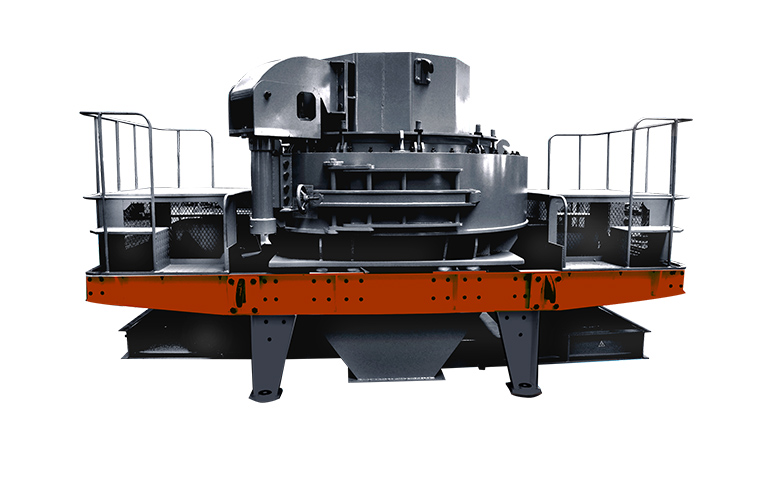

When investing in a VSI crusher in a manufactured sand production line, durability and maintenance costs are top priorities for quarry operators. Liming Heavy Industry’s VSI5X and VSI6X series are engineered to maximize your profit margins.

• Optimized Rotor Design: Our four-opening rotor design increases throughput capacity by up to 20% compared to traditional three-opening rotors.
• Reduced Wear Part Costs: By utilizing the "rock-on-rock" crushing principle, the material acts as its own armor, significantly reducing the wear and tear on the machine's internal metal alloy parts.
• Thin Oil Lubrication System: The automated dual oil pump lubrication system ensures the main bearing runs cool, extending the lifespan of the equipment and minimizing downtime.
• Easy Maintenance: A hydraulic cover opening device allows for quick inspection and rapid replacement of internal components, keeping labor costs low.

ROI Analysis for Quarry Owners

Investing in a high-end VSI crusher setup involves an initial capital expenditure, but the Return on Investment (ROI) is achieved rapidly through two main avenues:

First, Premium Pricing for End Product: Because a Liming VSI crusher produces perfectly cubical sand, your output meets stringent highway, high-speed railway, and hydropower dam specifications. You can sell this premium sand at a much higher price per ton compared to standard crushed dust.

Second, Lower Operational Expenses (OpEx): The advanced wear parts and hydraulic maintenance systems mean the plant operates with fewer interruptions. Less downtime and lower consumable part replacement costs mean a wider profit margin on every ton of sand produced.

Frequently Asked Questions (FAQ)

1. What is the ideal feed size for a VSI crusher in a sand making plant?

For optimal performance and shaping, the feed size into a VSI crusher should generally be between 30mm and 50mm, depending on the specific model and whether it is operating in a "rock-on-rock" or "rock-on-iron" configuration.

2. Can a VSI crusher process hard rocks like granite and basalt?

Yes. VSI crushers are specifically designed to handle hard and highly abrasive rocks. By using the rock-on-rock crushing chamber, the wear on metal parts is drastically reduced, making it the ideal machine for crushing granite, basalt, and river pebbles into sand.

3. How does the VSI crusher improve the shape of the manufactured sand?

The high-speed centrifugal force throws the rocks against a material bed or an anvil. This high-energy impact breaks the rock along its natural faults and chips away sharp, flaky edges, resulting in a rounded, cubical aggregate that is ideal for high-strength concrete.

To remain competitive in today's aggregate market, simply crushing rock is not enough; you must shape it perfectly while controlling production costs. Integrating a highly advanced VSI crusher in a manufactured sand production line is the most effective way to produce premium construction sand, reduce wear part expenditures, and scale your quarry operations profitably.

Are you ready to upgrade your aggregate plant and maximize your crushing efficiency? Contact Liming Heavy Industry today for a customized flow chart design, equipment configuration, and a detailed price list tailored to your specific project needs.
