Primary Mobile Jaw Crushers Types and Functions
This article defines the primary mobile jaw crusher, breaks down the two main chassis types (Tire and Crawler), explains their core functions (reducing material transportation), and includes a spec table.
In the fast-paced world of mining and construction, static equipment often becomes a bottleneck. Are you tired of the high costs associated with transporting raw materials from the blast site to a distant fixed plant? This is where the flexibility of mobile crushing stations becomes a game-changer. Specifically, understanding primary mobile jaw crushers types and functions is crucial for quarry owners looking to reduce operational costs and increase site adaptability.
As a global leader in crushing technology, Liming Heavy Industry has engineered mobile solutions that combine the raw power of our PE/C6X Jaw Crushers with highly mobile chassis systems. In this technical guide, we will explore the different classifications of these machines and their critical roles in modern aggregate production.
What is a Primary Mobile Jaw Crusher?

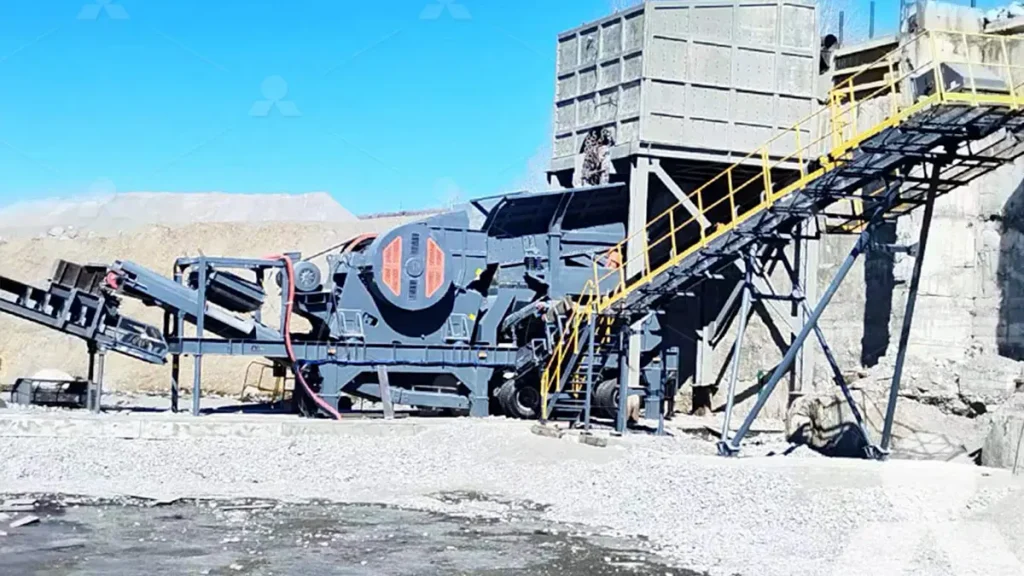

A primary mobile jaw crusher is a movable crushing unit equipped with a high-capacity jaw crusher as its core component. Unlike secondary crushers (cones or impacts) which shape the stone, the primary unit's function is "Coarse Crushing." It takes large, blasted rocks directly from the quarry face and reduces them to a manageable size (typically 150-300mm) for further processing.
Core Functions in the Production Line
- Elimination of Material Transport: The most significant function is the ability to move directly to the raw material source. This eliminates the need for expensive trucking of heavy, uncrushed rock.
- Integrated Design: It functions as a compact, self-contained unit combining the feeder, crusher, belt conveyor, and power system on a single chassis.
- Direct Production: For some low-standard road base projects, the primary mobile jaw crusher can function as a standalone production line.
classifying the Types: Tire-Type vs. Crawler-Type
When discussing primary mobile jaw crushers types and functions, the distinction lies primarily in the chassis design. Liming Heavy Industry offers two distinct series tailored to different terrain and project requirements.

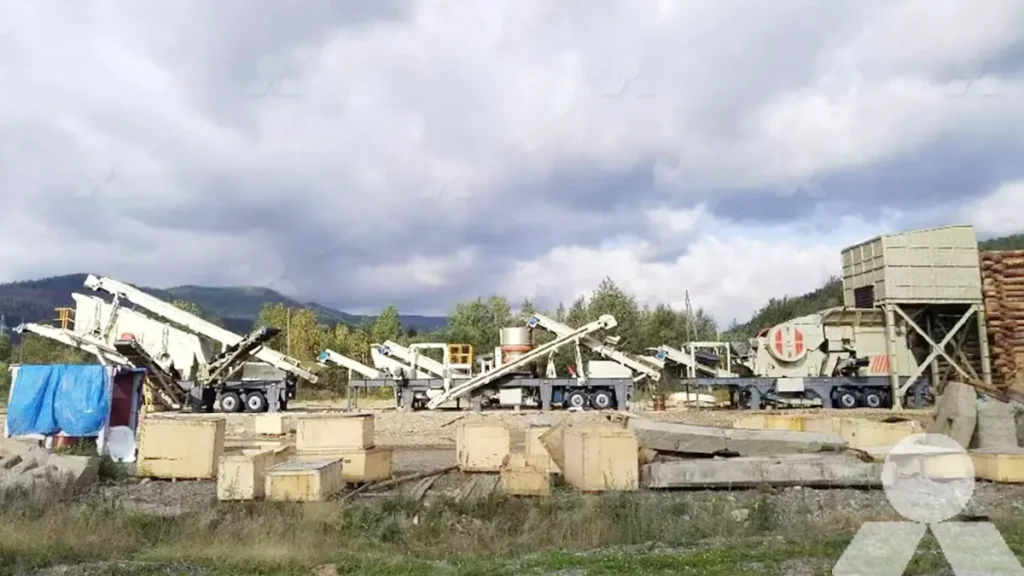

1. Tire-Type Mobile Jaw Crusher (K Series)
The NK Series is built on a wheeled chassis, designed for high mobility on roads and flat terrain.
- Mobility: Can be towed by a truck trailer on public highways, making it ideal for contractors who move between sites frequently.
- Setup Time: Extremely fast. Hydraulic support legs allow for quick stabilization without the need for concrete foundations.
- Best For: Construction waste recycling, urban infrastructure projects, and flat quarry sites in regions like Africa and South America.
2. Crawler-Type Mobile Jaw Crusher (Track Mounted)
The Crawler series mobile crusher utilizes a hydraulic track system, similar to an excavator, allowing it to move autonomously on site.
- Terrain Adaptability: Designed for climbing slopes and navigating wetlands or rugged mining environments where wheeled vehicles cannot go.
- Technology: Features a fully hydraulic drive system and often includes remote control operation for safety.
- Best For: Open-pit mining, mountainous regions, and confined workspaces.
Technical Comparison: Choosing the Right Type
To help you select the right machine for your project, we have compared the key parameters of Liming's mobile solutions below.
| Feature | Tire-Type Mobile Jaw Crusher | Crawler-Type Mobile Jaw Crusher |
|---|---|---|
| Movement Method | Towed by Truck Head | Self-driven (Hydraulic Track) |
| Terrain Capability | Flat ground, Paved roads | Mountainous, Muddy, Slopes (< 20°) |
| Setup Requirement | Hydraulic Legs Support | No Support Legs Needed |
| Cost | Lower Investment | Higher Investment |
| Primary Function | Rapid Transfer between sites | On-site climbing and maneuvering |
Frequently Asked Questions (FAQ)
1. Can the primary mobile jaw crusher work alone?
Yes, for simple applications like producing large fill material, it can work alone. However, to produce high-quality aggregate for concrete or asphalt, it is usually combined with a mobile secondary crusher (Cone or Impact) and a mobile screen.
2. What is the maintenance difference between the two types?
Tire-type crushers generally have lower maintenance costs as they rely on standard axles and tires. Crawler-type crushers require maintenance of the hydraulic track system and drive motors, which is more technical but offers superior off-road performance.
3. What capacity can Liming mobile jaw crushers handle?
Our mobile stations are equipped with our standard PE or C6X jaw crushers. Capacities range from 85 TPH (Tons Per Hour) up to 650 TPH depending on the model configuration and raw material hardness.
Conclusion: Enhance Your Mobility with Liming
Mastering the primary mobile jaw crushers types and functions is essential for optimizing your mining operations. Whether you need the rapid road transit of the Tire-type K Series or the rugged climbing ability of the Crawler series, Liming Heavy Industry has a solution engineered for your success.
By eliminating the need for fixed infrastructure and reducing material transport costs, our mobile units offer a rapid ROI for investors in the global mining sector.
