Introduction to 300 TPH Construction Sand Making Machine

In the competitive aggregate market, producing high-quality manufactured sand at scale is the primary challenge for quarry owners. Issues like poor particle shape, high wear costs, and inconsistent gradation often plague traditional crushing setups. This introduction to 300tph construction sand making machine technology is designed to help you navigate these challenges.

At Liming Heavy Industry, we understand that a 300-ton-per-hour output requires robust, high-efficiency equipment. Our advanced Vertical Shaft Impact (VSI) crushers are engineered specifically to meet these demands, offering superior shaping capabilities and reliable performance for large-scale construction projects in Southeast Asia, Africa, and beyond.

What Defines a 300TPH Sand Making Machine?

A "300tph construction sand making machine" typically refers to a high-capacity Vertical Shaft Impact (VSI) crusher capable of processing 300 tons of raw material per hour. Unlike jaw or cone crushers that rely on compression, these machines use high-velocity impact energy to break rocks.

This capacity class is critical for medium-to-large aggregate plants supplying concrete batching stations and asphalt mixing plants. At this volume, efficiency is paramount; a 1% drop in efficiency can mean significant revenue loss over time.

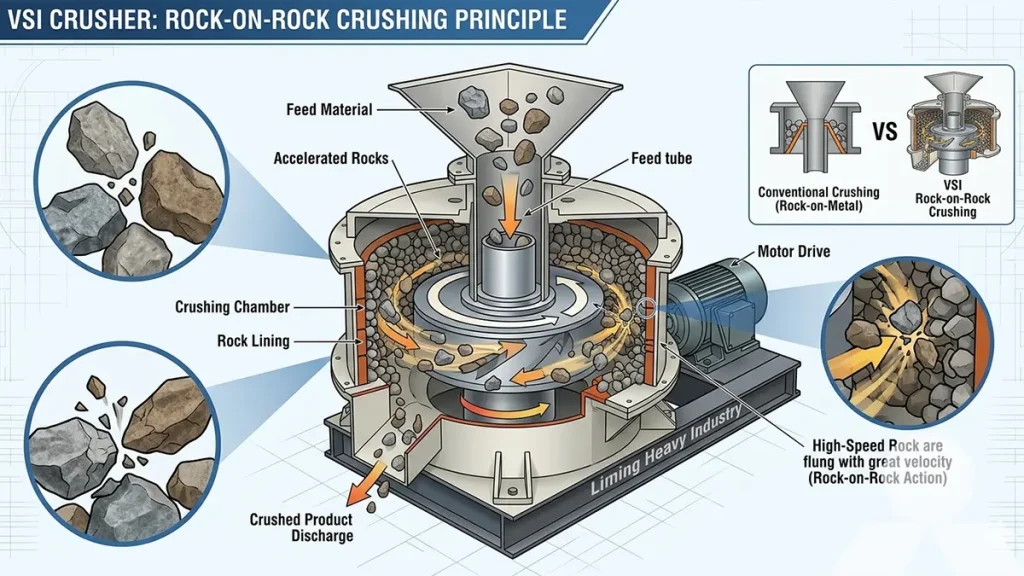

Working Principle: "Stone-Hitting-Stone" Technology

To understand the efficiency of Liming's 300tph machines, one must look at the core technology. Our VSI crushers utilize two distinct crushing modes to optimize throughput and wear life:

1. Stone-on-Stone (Waterfall Feed)

Materials fall from the hopper and are divided into two parts. One part enters the high-speed impeller, while the other falls around it. The accelerated particles from the impeller smash into the falling curtain of material. This method minimizes wear on metal parts and is ideal for shaping abrasive materials like granite or quartzite.

2. Stone-on-Iron (Center Feed)

All material enters the impeller and is thrown against metal impact plates. This provides a higher crushing ratio (more sand production) but increases wear. It is generally used for softer rocks or when higher sand conversion rates are needed.

Recommended Models for 300TPH Capacity

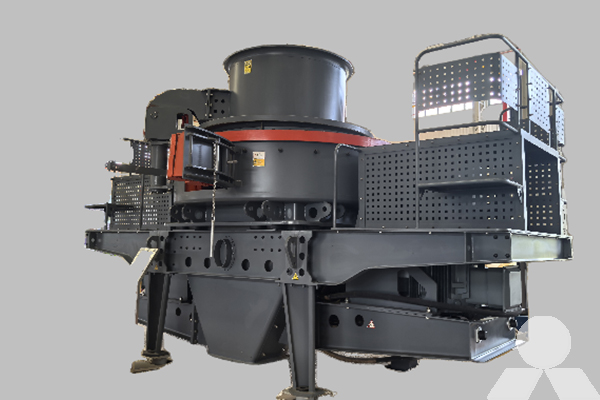

Not all VSI crushers can sustain a stable 300tph output. Based on Liming Heavy Industry's product portfolio, the VSI6X Series and VSI5X Series are the top contenders.

Note: "Waterfall Mode" is recommended to achieve the 300tph target with lower wear costs.

Why Choose Liming for Your 300TPH Project?

• Optimized Impeller Design: The VSI6X features a four-opening impeller design (compared to the traditional three), which increases material throughput by up to 30%.
• Hydraulic Lifting System: Routine maintenance is simplified with a hydraulic cover lifter, allowing a single operator to inspect internal parts without heavy lifting gear.
• Lower Maintenance Costs: Our "rock-on-rock" technology ensures that the material crushes itself, significantly reducing the consumption of wear parts like throw heads and impact plates.
• Superior Product Shape: The output sand has excellent cubical shape and reasonable gradation, meeting international standards for high-strength concrete (C60+).

Frequently Asked Questions

1. What is the feed size limit for a 300tph sand maker?

Generally, the maximum feed size is between 35mm and 50mm. Feeding larger rocks can cause blockages and damage the impeller. We recommend using a secondary cone crusher to reduce stone size before it enters the VSI.

2. How often do wear parts need replacing?

This depends on the abrasiveness of your stone. For silica-rich rocks (high abrasion), carbide tips may last 40-60 hours. For limestone, they can last hundreds of hours. Liming uses high-chrome alloy tips to extend this lifespan.

3. Can I adjust the gradation of the output sand?

Yes. By adjusting the rotor speed (RPM) and the air volume in the accompanying air classifier, you can control the fineness modulus (FM) and powder content of the final sand product.

Conclusion

This introduction to 300tph construction sand making machine highlights the importance of selecting the right technology for high-volume production. Whether you choose the advanced VSI6X or the versatile VSI5X, Liming Heavy Industry ensures that your investment yields high-quality aggregates and consistent profits.
